Vorraussetzungen

Für das folgende Projekt wird ein WAS in der Version 6.10 benötigt. Dieser kann als Evaluierungsversion für Linux kostenlos unter der Adresse:

http://www.sap.com/solutions/technology/linux/eval/was/

bestellt werden. Die beschriebene Funktion setzt aber zusätzlich Support Package 20 vorraus, da hier der Baustein CONVERT_OTF um eine Binärausgabe des PDF Dokuments erweitert wurde.

Vorbereitung

Dieses Beispiel für die dynamische PDF generierung mit dem WAS basiert auf der BSP Applikation SF_WEBFORM_01 die nach Z_SF_WEBFORM_01 kopiert wurde.

Implementation

Layout: start.htm

Das Layout der Seite start.htm wurde um die Auswahl des Ausgabeformats ergänzt:

   </tr>
    <td><otr>Ausgabeformat</otr></td>
    <td colspan=4><select name="outputformat" size=1>
        <option> PDF
        <option> HTML
        </select></td>
   </tr>

Eventhandler OnInputProcessing: start.htm

Der Parameter outputformat muß über den Eventhandler OnInputProcessing übergeben werden:

case event_id.

when 'display'.
  navigation->set_parameter( 'form_name' ).
  navigation->set_parameter( 'language' ).
  navigation->set_parameter( 'carrier_low' ).
  navigation->set_parameter( 'carrier_high' ).
  navigation->set_parameter( 'customer_id' ).
  navigation->set_parameter( 'outputformat' ).

  navigation->next_page( 'DISPLAY_FORM' ).
endcase.

Seitenattribute

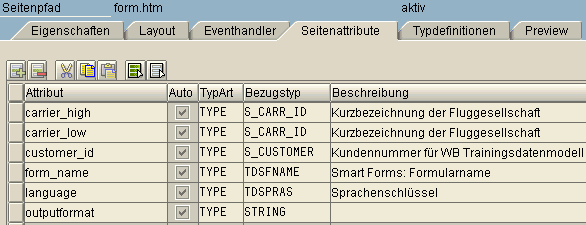

Die Seitenattribute der Seite form.htm müssen um outputformat ergänzt werden:

Eventhandler OnInputProcessing: form.htm

Eventhandler für die PDF oder HTML Generierung:

* data to select
data: lt_customer    type scustom,
      lt_bookings    type ty_bookings,
      lt_connections type ty_connections.

* self defined select-options table
data: lt_scar type table of car_sopt,
      ls_scar type car_sopt.

* parameters for generated function module
data: l_function_module_name type rs38l_fnam.
data: ls_output_options     type ssfcompop,
      ls_control_parameters type ssfctrlop.

data: ls_output_data type ssfcrescl.

* generated result: HTML with embedded CSS
data: ls_xmloutput type ssfxmlout,
      lt_html_raw  type tsfixml.
data: l_xstring    type xstring,    "needed for HTTP response
      l_xlength    type i,
      l_html_xstring   type xstring.
* generated result: OTFDATA
data: lt_otfdata type tsfotf.
* converted result: PDF Data.
data: lt_pdfdata type table of tline,
ls_pdfdata like line of lt_pdfdata.
* Outputvariables for the PDF Output
data: l_string    type string,    "needed for HTTP response
      l_length    type i,
      l_html_string   type string.
*--------------------------------------------------------------
* For debugging all Page Attributes must be set
*--------------------------------------------------------------
if carrier_high is initial.
  carrier_high = 'AA'.
endif.
if carrier_low is initial.
  carrier_low = 'AA'.
endif.
if customer_id is initial.
  customer_id = 6.
endif.
if form_name is initial.
  form_name = 'SF_EXAMPLE_02'.
endif.
if language is initial.
  language = 'D'.
endif.
if outputformat is initial.
  outputformat = 'PDF'.
endif.
*--------------------------------------------------------------
* Data selection
*--------------------------------------------------------------
* Nothing will be selected if the user entered lower case,
* so translate it:
translate carrier_low to upper case.
translate carrier_high to upper case.

* fill select-options:
ls_scar-sign = 'I'.
ls_scar-option = 'BT'.
ls_scar-low  = carrier_low.
ls_scar-high = carrier_high.
append ls_scar to lt_scar.

* select data or return if no customer exists
select single * from scustom into lt_customer where id = customer_id.
check sy-subrc eq 0.
select * from sbook into table lt_bookings
         where customid = customer_id
         and   carrid   in lt_scar
         order by primary key.
select * from spfli into table lt_connections
         for all entries in lt_bookings
         where carrid = lt_bookings-carrid
         and   connid = lt_bookings-connid
         order by primary key.

*-------------------------------------------
* get name of generated function module
*---------------------------------------
call function 'SSF_FUNCTION_MODULE_NAME'
     exporting  formname           = form_name
*                 variant            = ' '
*                 direct_call        = ' '
     importing  fm_name            = l_function_module_name
     exceptions no_form            = 1
                no_function_module = 2
                others             = 3.

if sy-subrc <> 0.
*   error handling
  message id sy-msgid type sy-msgty number sy-msgno
          with sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  exit.
endif.
*-----------------------------------------------------------
* activate XSF Output Mode
*---------------------------
if outputformat = 'PDF'.
** Deactivate XDF
*  ls_output_options-xdfcmode = 'X'.
*  ls_output_options-xdf = space.
** Deactivate XSF and XSF + HTML
*  ls_output_options-xsfcmode = 'X'.
*  ls_output_options-xsf = space.
** Deactivate Dialog and only get OTF Data
  ls_control_parameters-no_dialog = 'X'.
  ls_control_parameters-getotf    = 'X'.
else.
  ls_output_options-xsf        = 'X'.      " XSF Output active
  ls_output_options-xsfcmode   = 'X'.      " Get XSF params from program
  ls_output_options-xsfoutmode = 'A'.      " A:Application, S:Spool
  ls_output_options-xsfformat  = 'X'.      " Formatting ON
  ls_output_options-xsfaction  = space.    " Action URL for submit btn.
endif.
* language
translate language to upper case.
ls_control_parameters-langu = language.

*------------------------------------------------------------
* Call the generated function module
*---------------------------------------
call function l_function_module_name
     exporting
*                 archive_index        =
*                 archive_parameters   =
                control_parameters   = ls_control_parameters
*                 mail_appl_obj        =
*                 mail_recipient       =
*                 mail_sender          =
                output_options       = ls_output_options
                user_settings        = space
                customer             = lt_customer
                bookings             = lt_bookings
                connections          = lt_connections
     importing
*                 document_output_info =
                job_output_info      = ls_output_data
*                 job_output_options   =
     exceptions formatting_error     = 1
                internal_error       = 2
                send_error           = 3
                user_canceled        = 4
                others               = 5.

if sy-subrc <> 0.
*   error handling
  message id sy-msgid type sy-msgty number sy-msgno
          with sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  exit.
endif.

if outputformat = 'PDF'.
*--------------------------------------------------------------------
* PDF ausgabe
*--------------------------------------------------------------------
  lt_otfdata = ls_output_data-otfdata.

  call function 'CONVERT_OTF'
   exporting
     format                      = 'PDF'
*     MAX_LINEWIDTH               = 132
*     ARCHIVE_INDEX               = ' '
*     COPYNUMBER                  = 0
   importing
     bin_filesize                = l_xlength
     bin_file                    = l_html_xstring
    tables
      otf                        = lt_otfdata
      lines                      = lt_pdfdata
   exceptions
     err_max_linewidth           = 1
     err_format                  = 2
     err_conv_not_possible       = 3
     err_bad_otf                 = 4
     others                      = 5.

  if sy-subrc <> 0.
    message id sy-msgid type sy-msgty number sy-msgno
            with sy-msgv1 sy-msgv2 sy-msgv3 sy-msgv4.
  endif.

*--------------------------------------------------------------------
* Fill HTTP request
*--------------------------------------------------------------------
  response->set_header_field( name  = 'content-type'
                              value = 'application/pdf' ).

  l_xlength = xstrlen( l_html_xstring ).

  response->set_data( data   = l_html_xstring
                      length = l_xlength ).

else.
********************************************************************
  ls_xmloutput = ls_output_data-xmloutput.
  lt_html_raw  = ls_xmloutput-trfresult-content[].

*--------------------------------------------------------------------
* Fill HTTP request
*--------------------------------------------------------------------
  response->set_header_field( name  = 'content-type'
                              value = ls_xmloutput-trfresult-type ).

*-------------
* SAP Smart Forms returns XML data island in raw data format.
* method 'set_data' of the response object needs the output
* in XSTRING. The next loop convertes the raw table into xstring.
*-------------
  loop at lt_html_raw into l_xstring.
    concatenate l_html_xstring l_xstring into l_html_xstring
                                              in byte mode.
  endloop.

  l_xlength = xstrlen( l_html_xstring ).

  response->set_data( data   = l_html_xstring
                      length = l_xlength ).

*---------------------------------------------------------------------
endif.
